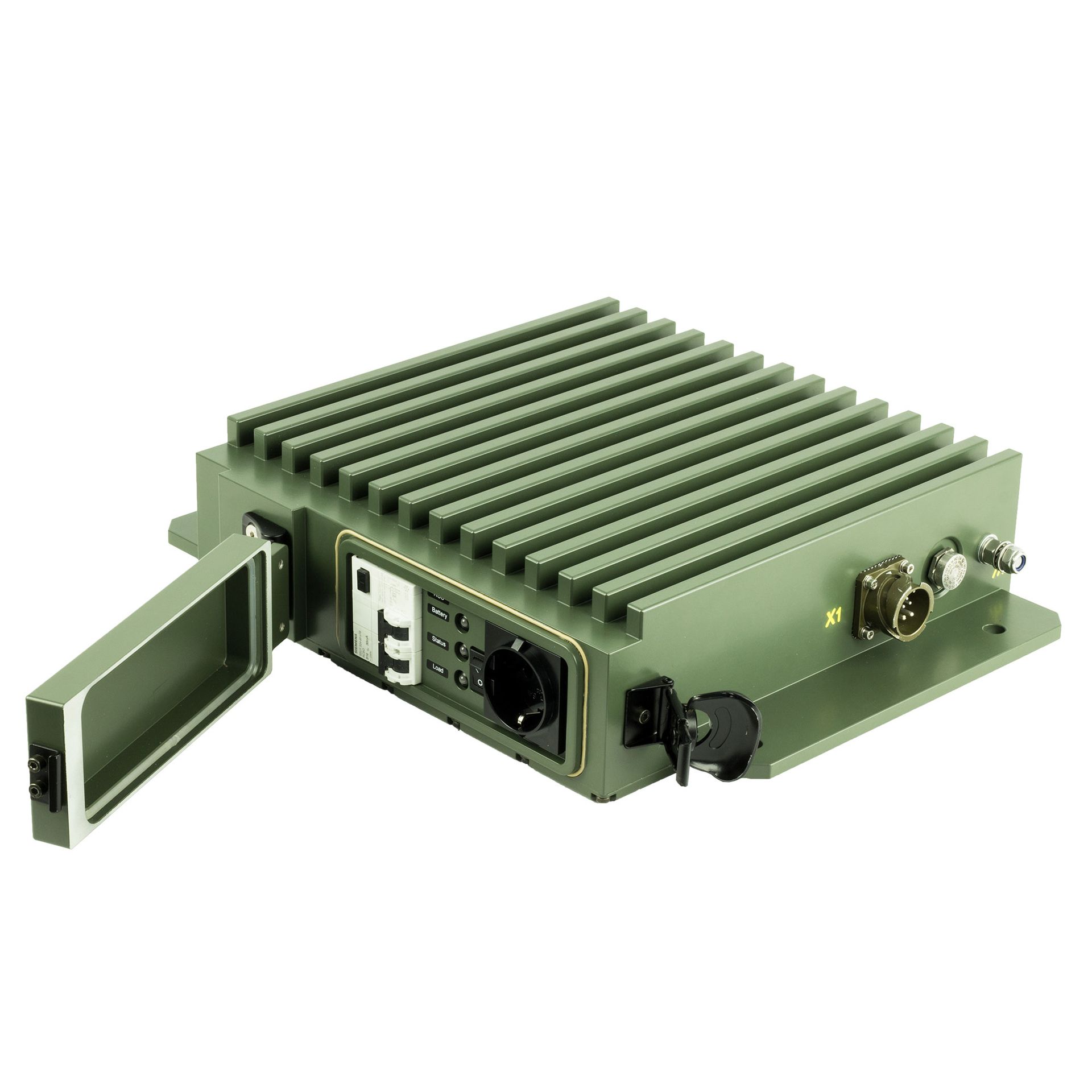

Inversis 700

Convertisseur DC/AC durci

roda sine wave inverters convert battery-fed electrical energy of 24 V voltage into a stabilised, quartz-accurate AC voltage of 230 V, 50 Hz or 60 Hz (factory adjustable) with high efficiency. The voltage is purely sinusoidal and corresponds exactly to the 230 V voltage of the electricity suppliers. Only a true sinusoidal voltage guarantees gentle and trouble-free operation of all connected loads, especially inductive and mixed loads (e.g. drills). Inexpensive inverters with trapezoidal or square-wave output voltages can significantly impair and/or damage the function of connected equipment, which can be decisive for the success of your mission.

Spécifications techniques


Tension d'entrée

  • 24 VDC

Plage de tension d'entrée

  • 18 - 33 VDC

Intensité de marche à vide

  • 0,8 A @ 24 VDC

Tension de sortie

  • 230 VAC / ± 5%

Fréquence

  • 50 Hz ± 0.5%

Puissance de sortie

  • 700 VA ± 3%

Puissance maximale

  • 100% de charge avec 3.1A


Courant de pointe

  • Charge à 200% avec 6.1A pendant 1 seconde

Forme initiale sinus pur

  • (THD < 5% @ charge normale)

Efficacité

  • typ. 85%

Affichage de la tension

  • LED rouge / orange / verte

Affichage de charge

  • LED rouge / orange / verte

Affichage de l'état

  • LED rouge / orange / verte

Fonction de protection électronique

  • Surcharge, court-circuit, inversion de polarité,
  • Sur / sous tension d'entrée,
  • Surtempérature, courant de défaut (RCCB)

Sécurité

  • EN60950


Certification

  • IP68 (profondeur de plongée 4m),
  • Conçu pour répondre à la norme MIL-STD 810G,
  • Conçu pour MIL-STd 461F

Plage de température en opération:

  • -30 °C à + 55 °C

en stock:

  • -40 °C à + 70 °C

Refroidissement

  • convection

Fiche DC

  • VG 95234-18-9

Prise AC

  • Schuko ou BS1363

Boîtier

  • aluminium

Dimensions

  • (L x l x H) 394 x 320 x 95 mm

Poids

  • environ 15 kg
