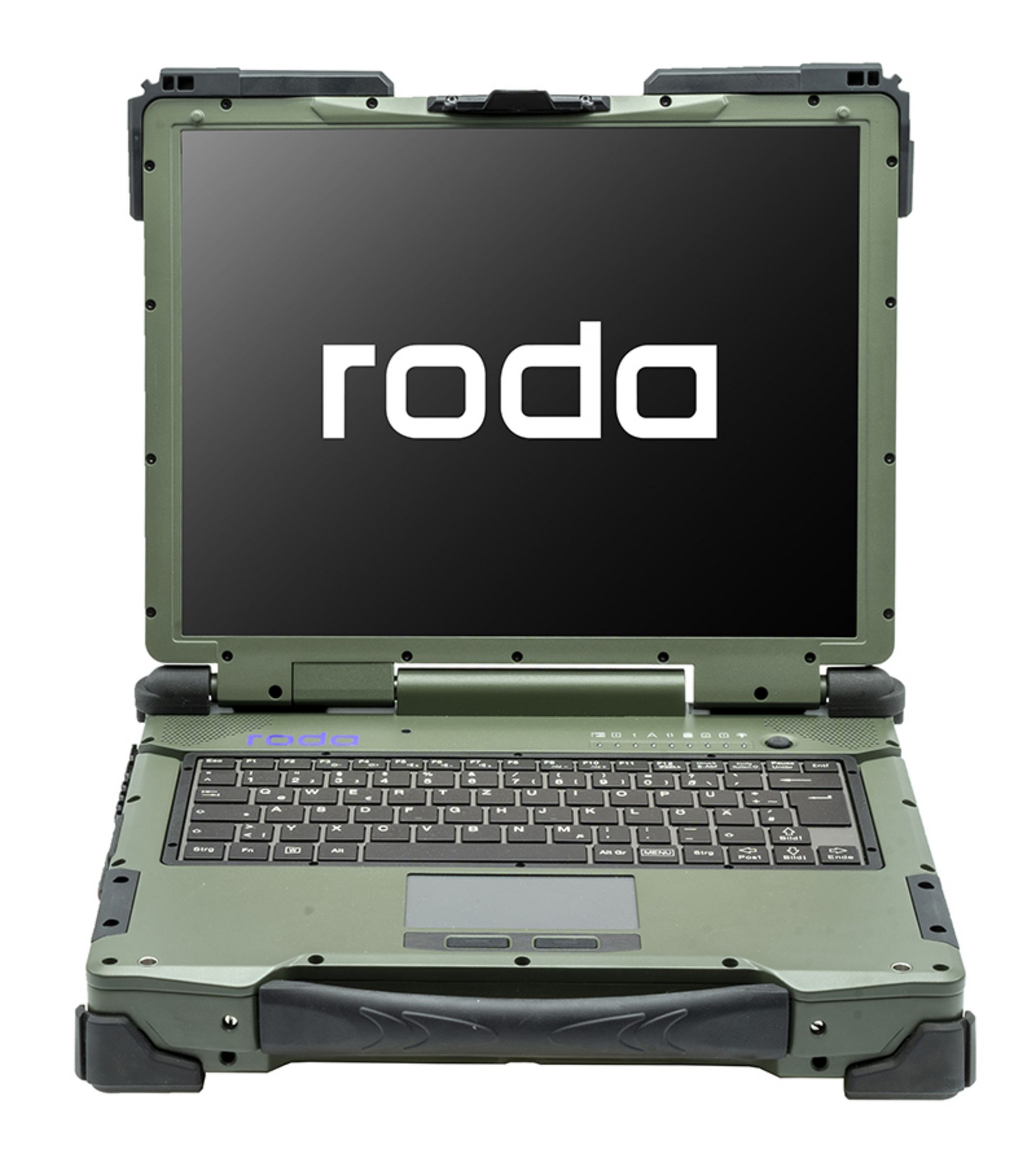

Rocky RK15

La nouvelle génération avec le concept unique de protection IP65

La nouvelle génération des Rockys reste fidèle à la philosophie du produit roda. Un facteur de forme cohérent par rapport aux générations précédentes et le concept unique de protection IP65 garantissent l'absence de risque d'eau ou de poussière, même dans les interfaces non protégées ou dans les lecteurs retirés. Les performances ont été considérablement améliorées par une plate-forme Intel® plus puissante et avec plus de mémoire. Il était très important que le matériel puisse fonctionner avec les systèmes d'exploitation Microsoft Windows 10.

Les ordinateurs Rocky RK15 sont parfaitement adaptés pour une installation dans des véhicules et des avions protégés ou blindés. Il est possible d'améliorer l'ordinateur avec l'ajout de prises militaires ainsi qu'avec d'autres accessoires adaptés.

Spécifications techniques

  • LCD 15.1“ UXGA (1600×1200)
  • LED backlight
  • sunlight readable

Chipset

  • Intel® Tigerlake-H Platform
    Mobile Intel® RM590E

CPU

  • Intel® Xeon® W-11865MLE processor,
    24 MB cache, 8 cores, up to 4.20 GHz

Graphics

  • Intel® Iris XE

Memory

  • up to 64 GB DDR4 3200 MHz ECC/nonECC (2 slots)

Storage

  • 2x exchangable PCIe NVME SSD

FlexBay

  • exchangable optical drive: DVD±RW
  • Optional: Second Li-Ion battery, 10.8 V, 8700 mAh

Power supply

  • Li-Ion battery, 10.8 V, 8700 mAh
  • AC-adaptor 90 W, 90 - 240 V, 50 - 60 Hz
  • Optional: Integratted vehivle adaptor 12 - 32 V with surge protection

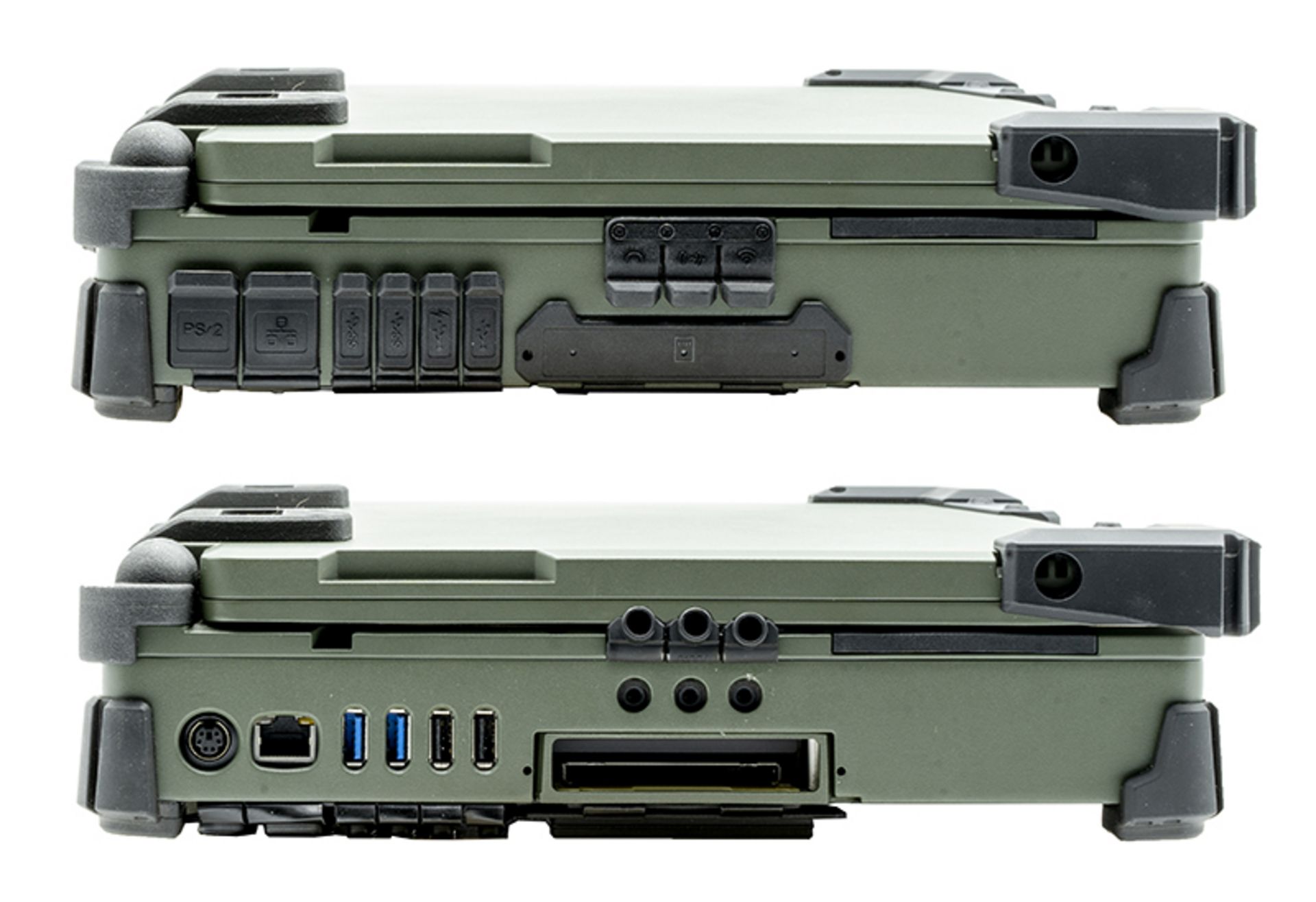

Interfaces

  • 2x USB2.0 (1x quick charge)
  • 2x USB3.1 Gen. 2
  • 1x 2.5 GBit LAN (RJ45)
  • 3x Audio (3.5 mm jack)
  • 1x DisplayPort
  • 1x VGA (DB15)
  • 1x DVI (with roda display remote)
  • 2x COM (DB9)
  • 1x Express Card (PCIe)
  • 1x DC-In (2-pin)
  • 1x docking connector

Optionale Interfaces

  • 1x MIL DC-In (3-Pin)
  • 1x PS/2
  • 1x PCMCIA
  • 1x Fiber-LAN (100FX, 1000LX, 1000SX)
  • additional 1x GBit LAN (RJ45)
  • additional 2x COM (DB9)
  • 1x DockUnder docking solution

Security

  • TPM 2.0

Operating system

  • Windows 10 Pro
  • Windows 11 Pro

Certification

  • CE, FCC, WHQL, WEEE, REACH,
  • IP65 (with open I/O-ports),
  • MIL-STD-810
  • Optional: MIL-STD-461 Ground Navy (Navy fixed & Air Force)

Housing

  • rugged magnesium housing

Colour

  • black
  • military green RAL6031HR
  • other colours on request

Dimensions [W×H×D]

  • 353 x 78.7 x 301 mm

Weight

  • 5.5 kg

Options

  • Touch screen resistive, sunlight readable
  • Heater for -30 °C operating
  • 4x RS232/422/485 external interfaces
  • 2nd LAN card 10/100/1000 MBit
  • Fiber optic LC or HMC connector (100FX, 1000LX oder 1000SX)
  • Intel® WiFi 6E AX210 (WLAN 802.11 a/b/g/n/ac /ax + Bluetooth 5.2)
    Ublox M9N GPS/GLONASS
  • Integrated Chip/Smart Card Reader class 1
  • Internal vehicle adapter (direct 12 - 32 VDC) incl. SP200 module / surge protector
  • Different keyboard versions available
  • Isolated Housing for vehicle installation
  • Military grade connectors for nearly all kind of interfaces on request
  • Upgrade to MIL-STD-461 Ground Army (Navy mobile & Army)
  • Certification according to TEMPEST SDIP 27 Level B (ER)

Customized for your mission

The Rocky series can be customized down to the smallest detail to create the smartest solution for your needs. The devices already offer plenty of space on the back for almost all types of military connectors. If more ports are needed, the housing can be customized and the standard ports can be replaced by military round connectors.

Fiber to the Rocky

The Rocky is one of very few products on the market with optical LAN Interfaces. roda is able to integrate demand oriented and individual solutions, concerning both, standard LC interfaces or rugged HMC / HMA.

Flexbay Extention

A FlexBay Modul can be integrated, with the flexible DVD-Drive Any standard model of the Rocky can be modified to the required configuration and application within a very short time.
