Panther DR13

full-rugged customizable 8.4" tablet

Panther DR13

rugged 8.4" tablet PC

The 8.4" tablet PC Panther DR13 is characterised by its extraordinary customisation options and enormous ruggedness. The variety of available modules and possible interfaces with industrial or military plugs is enormous, which is proven by countless installations in protected and armoured vehicles.

In addition, the Panther series offers the same IP65 protection concept and IT platform as the Rocky laptop, so you can rely on sophisticated technology. The open product architecture of the Panther also allows a modular combination with the roda displays, so that individual panel PCs can be configured from standard components. This is how the development time and expenditures for a panel PC with 10", 15", 19", or 21" are reduced to an affordable and acceptable scale.

roda Panther DR13
Panther DR13 left side
Panther DR13 top side
Panther DR13 bottom side

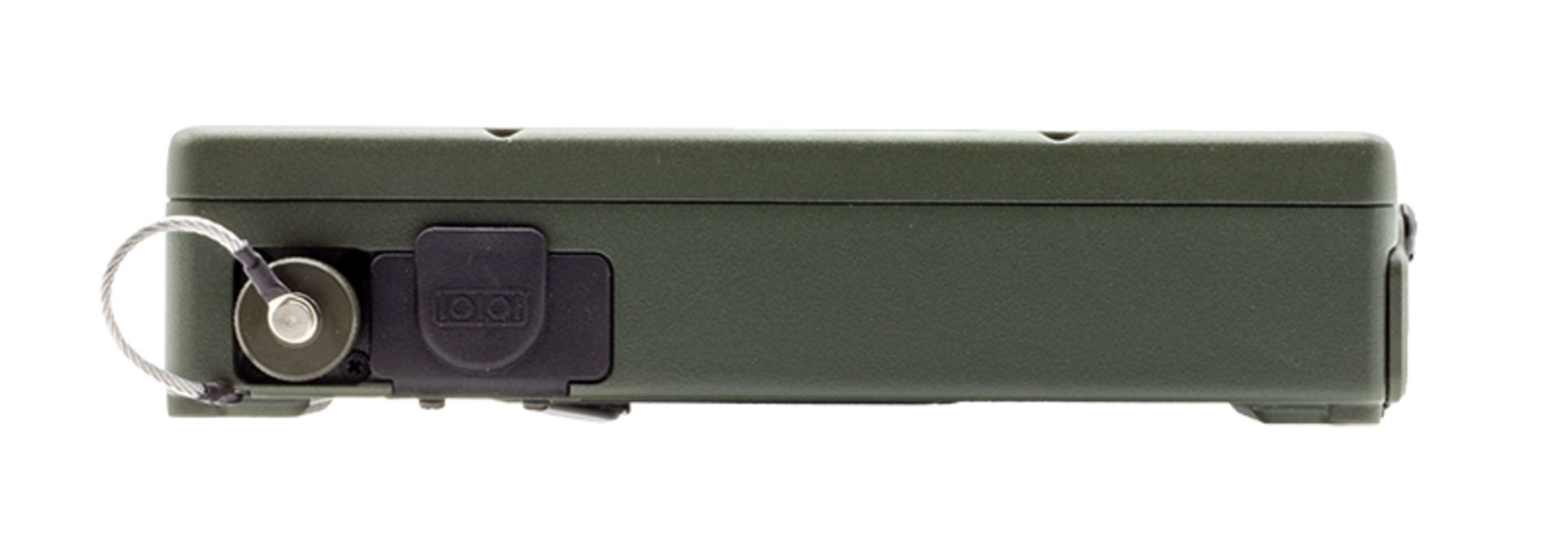

Panther DR13 right side

Technical specifications

Display

  • 8.4“ XGA (1024×768)
  • typ. 750 cd/m²
  • LED backlight
  • resistive touch screen
  • optical bonding

Chipset

  • Intel® Kaby Lake-U platform

CPU

  • Intel® Core™i7-7600U™, Kaby Lake, 2.8 GHz (3.9 GHz max. Turbo Frequency)

Graphics

  • Intel® HD Graphics 620

Memory

  • up to 32 GB DDR4 2133 MHz (1x SO-DIMM slot)

Storage

  • exchangeable 2.5”SATA HDD (500 GB Std.)
  • >> optional with SATA SSD (MLC or SLC)

Audio

  • HD audio
  • stereo speaker

Keypad

  • ON/OFF
  • LCD brightness
  • standby
  • 4 free programmable funktion keys

Security

  • TPM2.0 module

Interfaces

  • 2x USB3.1 Gen.1 (1x fast charge)
  • 1x Gbit LAN (RJ45)
  • 1x serial (DB9)
  • 1x DC-In (MIL)
  • 1x docking connector
  • 1x ExpressCard/54
  • 1x SIM card slot
  • 1x SD card slot

Power supply

  • Li-ion battery, 10.8 V, 5800 mAh
  • internal vehicle adapter 12-32 VDC with surge protection
  • AC-adapter 90 W, 19 VDC, 3.4 A, 100~240 VAC, 50/60 Hz

Operating Systems

  • Windows 10 Pro

Certification

  • CE/FCC/DOE, WEEE, REACH, RoHS2.0
  • IP65
  • MIL-STD-810G
  • MIL-STD-461G

Housing

  • rugged magnesium housing

Colour

  • military green (NATO olive / RAL6031HR)
  • black

Dimensions

  • 250 x 190 x 45.2 mm (L x D x H)

Weight

  • 2.3 kg

Options

  • WiFi module (Intel® Wireless-AC 9260)
    •    WLAN 802.11 a/b/g/n/ac
    •    Bluetooth 5.0
  • GPS module u-blox Neo-M8N (GPS/GLONASS)
  • 2nd GBit LAN 10/100/1000 MBit
  • fiber optic LAN 100/1000 MBit
  • display filter for night vision equipment
  • heater for -30°C operating
  • military round connectors for nearly all interfaceson request
  • BSI Zone 1 / SDIP 27 Level B
  • MIL-STD-461G certification
    • Ground Army (Navy mobile & Army)

Accessoires


Adaptateur secteur standard 90W
pour connexions industrielles à 2 broches ou MIL à 3 broches
AC90 | MIL AC adaptateur
90W, IP65, MIL-STD-810/461, TEMPEST
ROD01.2 | Convertisseur DC MIL
80W, IP65, MIL-STD-810/461, TEMPEST
StandUnit
table mount or for vehicle mounting
Ext. battery charger
for Panther DR series
DockLite port replicator
for Panther DR/DK series
