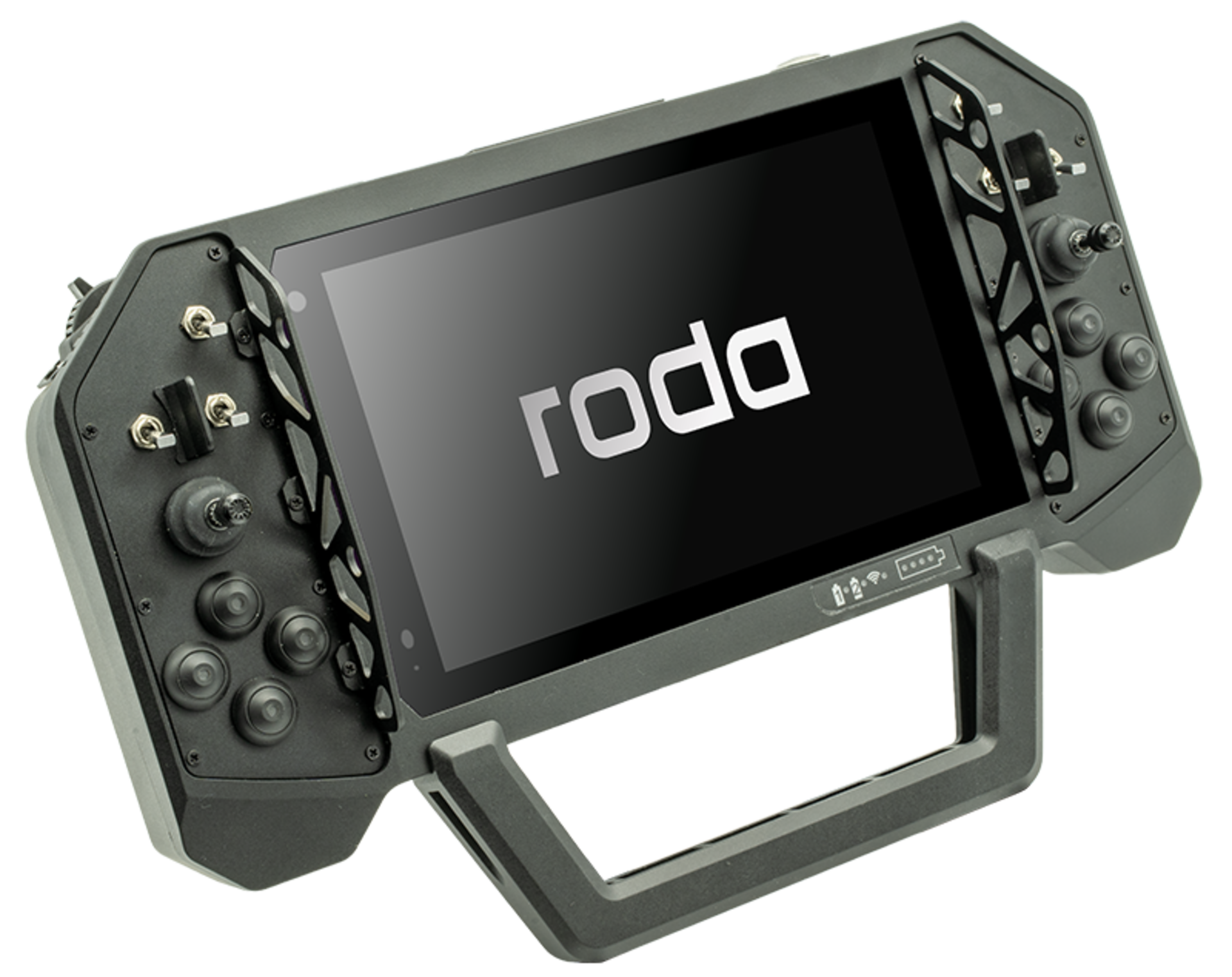

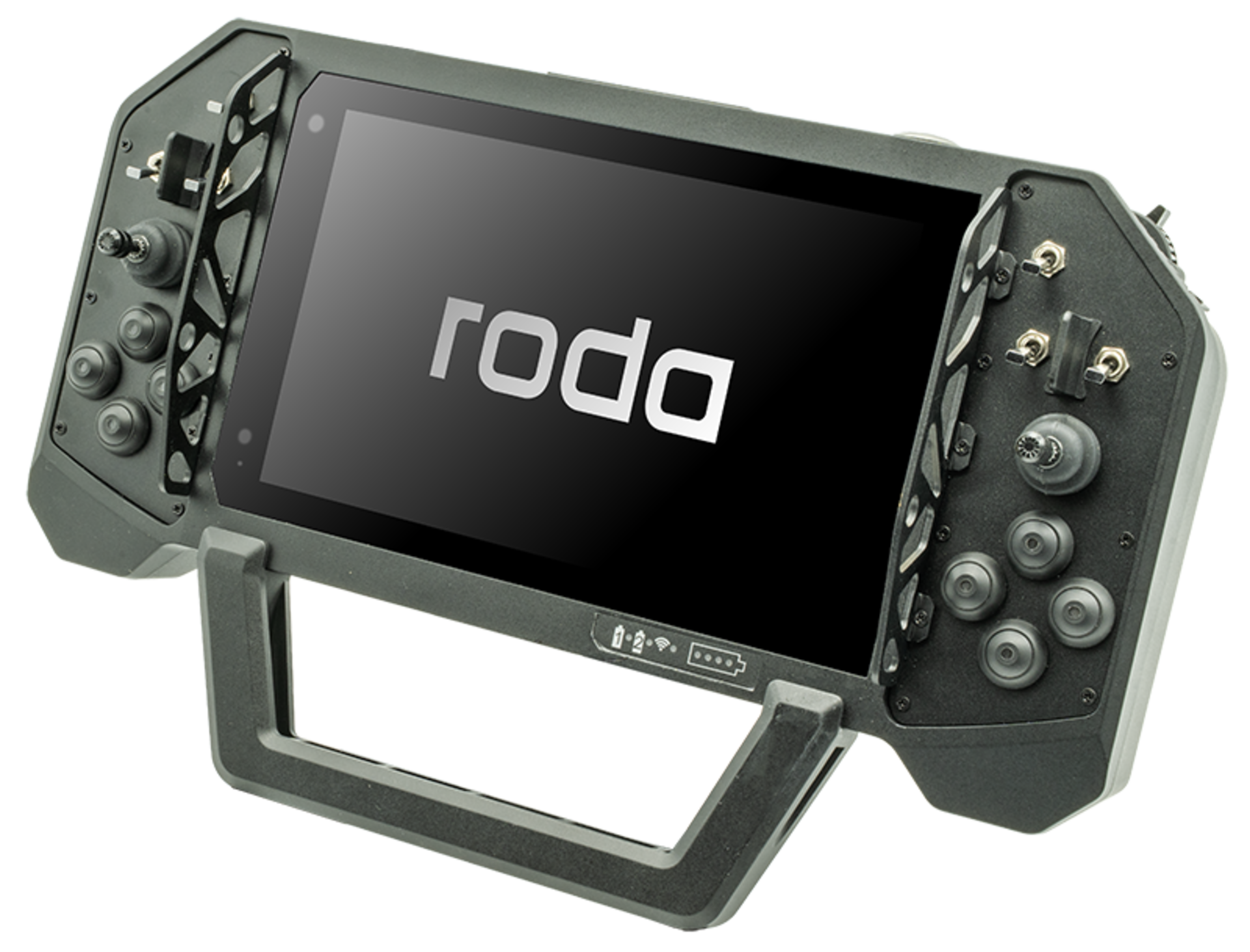

Rugged Controller RC08

full-rugged 8" tablet controller

The fully rugged and powerful 8" tablet with a wide range of HID input options for use as a controller for drones or unmanned vehicles. The RC08 offers a large number of possible interfaces with military connectors, such as Fischer connectors. In addition to MIL-STD-810H, the IP65-certified device also complies with MIL-STD-461G.

Technical specifications

Display

  • LCD 8“ WUXGA (1920 x1200)
  • Sunlight readable
  • Brightness up to 1000 cd/m²
  • Optional: Night Vision

Touch

  • Capacitive multi touch screen

CPU

  • Intel® Atom® x6211E Processor
  • 1.5M Cache, up to 3GHz
  • Intel® Elkhart Lake (x6211E)

Graphics

  • Intel® UHD Graphics

Memory

  • 16 GB DDR4-3200 (1x SO-DIMM slots)
  • Opional: 32 GB

Storage

  • 256 GB M.2 2242 PCIe  3.0 (1x slots)
  • Opional: 512 GB / 1 TB

Security

  • TPM 2.0

Operating System

  • Windows 11 IoT

Human interfaces

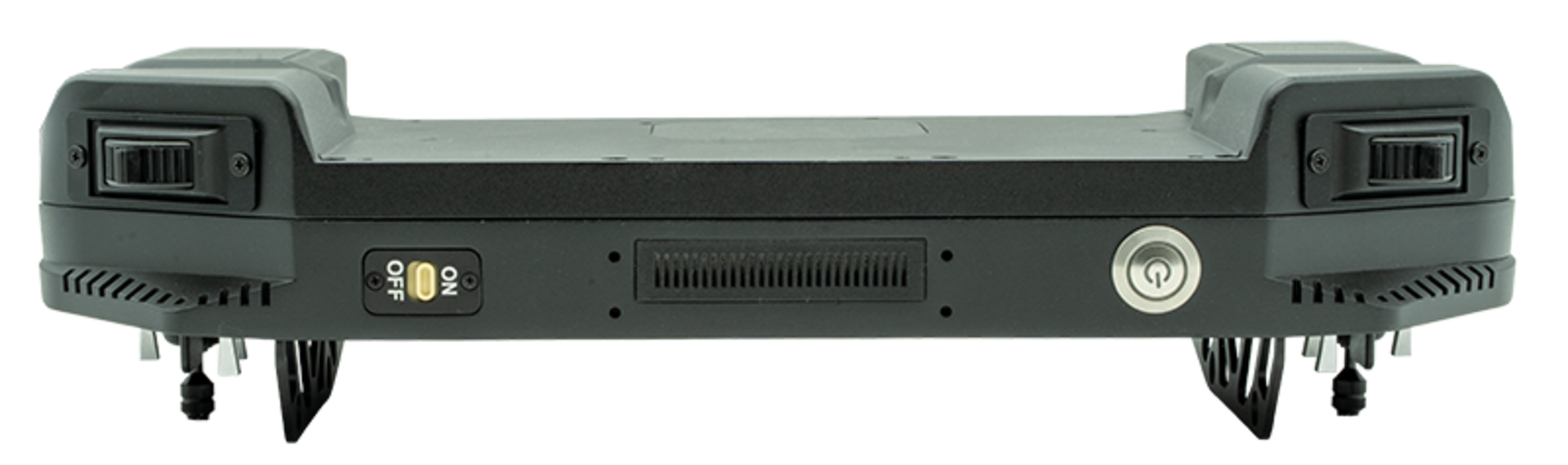

  • Top:
    • 2x Slider
    • 1x System Power Button
    • 1x Radio Module Switch
    • Optional: 1x Night Vision Switch

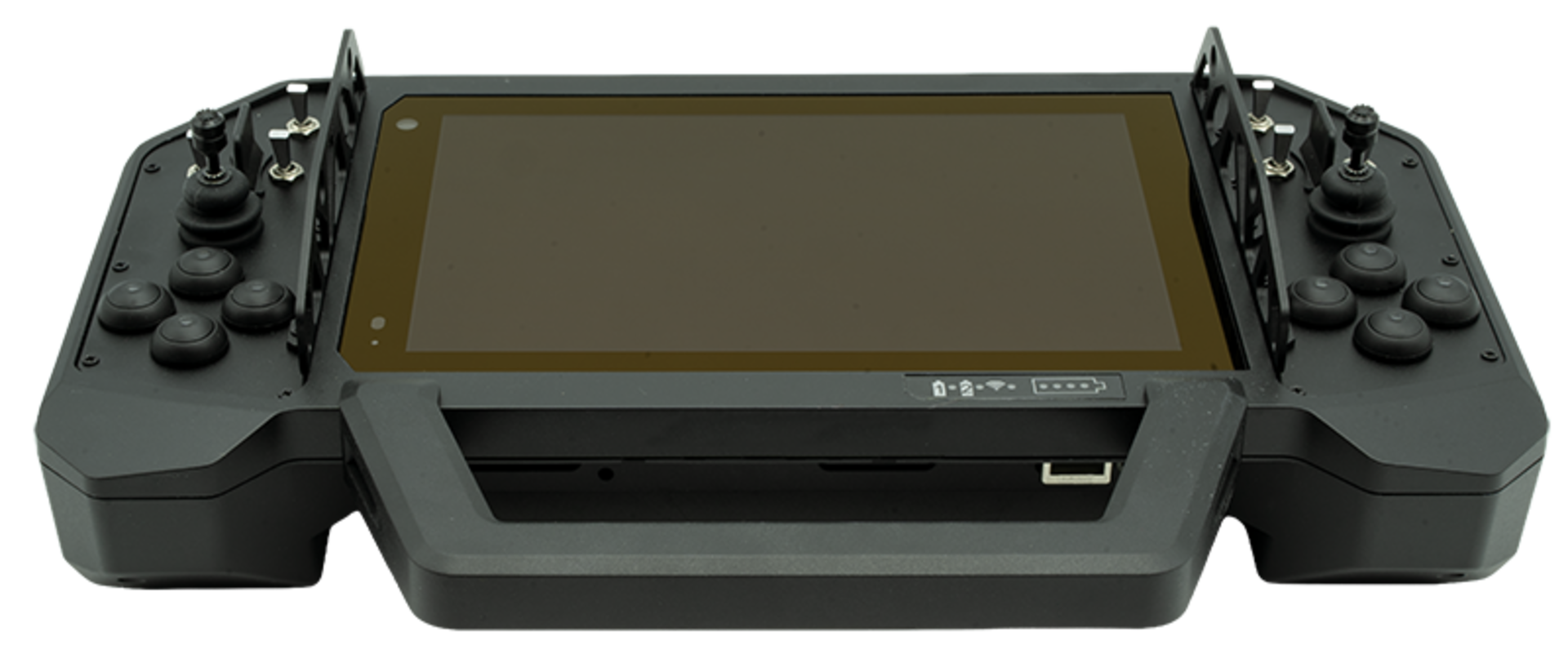

  • Front left:
    • 1x 2-axis Joystick
    • 2x 2-way Toggle Switch
    • 1x 3-way Toggle Switch
    • 4x Button
  • Front right:
    • 1x 2-axis Joystick
    • 2x 2-way Toggle Switch
    • 1x 3-way Toggle Switch
    • 4x Button

Radio Module

  • Azuretec SWT1528
  • 800MHz; 2.4GHz/5GHz (auto-switching)
  • UART & LAN
  • Antenna:
    • External Omnidirectional Antenna (SMA)
    • 800MHz / 2.4GHz / 5.8 GHz
  • Optional:
    • Embbeded Directional Antenna with Sunshield
  • RC Transmitter Protocol:
    • Supporting SBUS, able to control through radio module independently.

I/O Interfaces

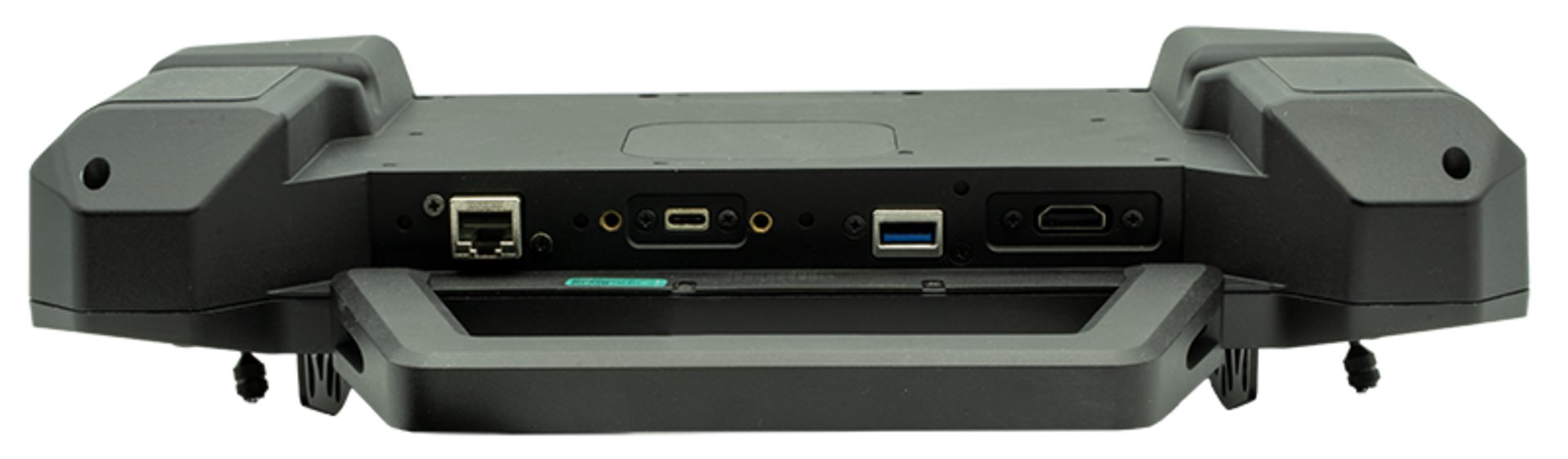

  • Bottom:
    • 1x HDMI® Connector
    • 1x USB 3.1 Gen. 2 Type-C
    • 1x USB 3.1 Gen. 2 Type-A
    • 1x LAN RJ45
  • Optional (choose one):
    • 1x Fischer USB2.0
    • 1x Fischer LAN

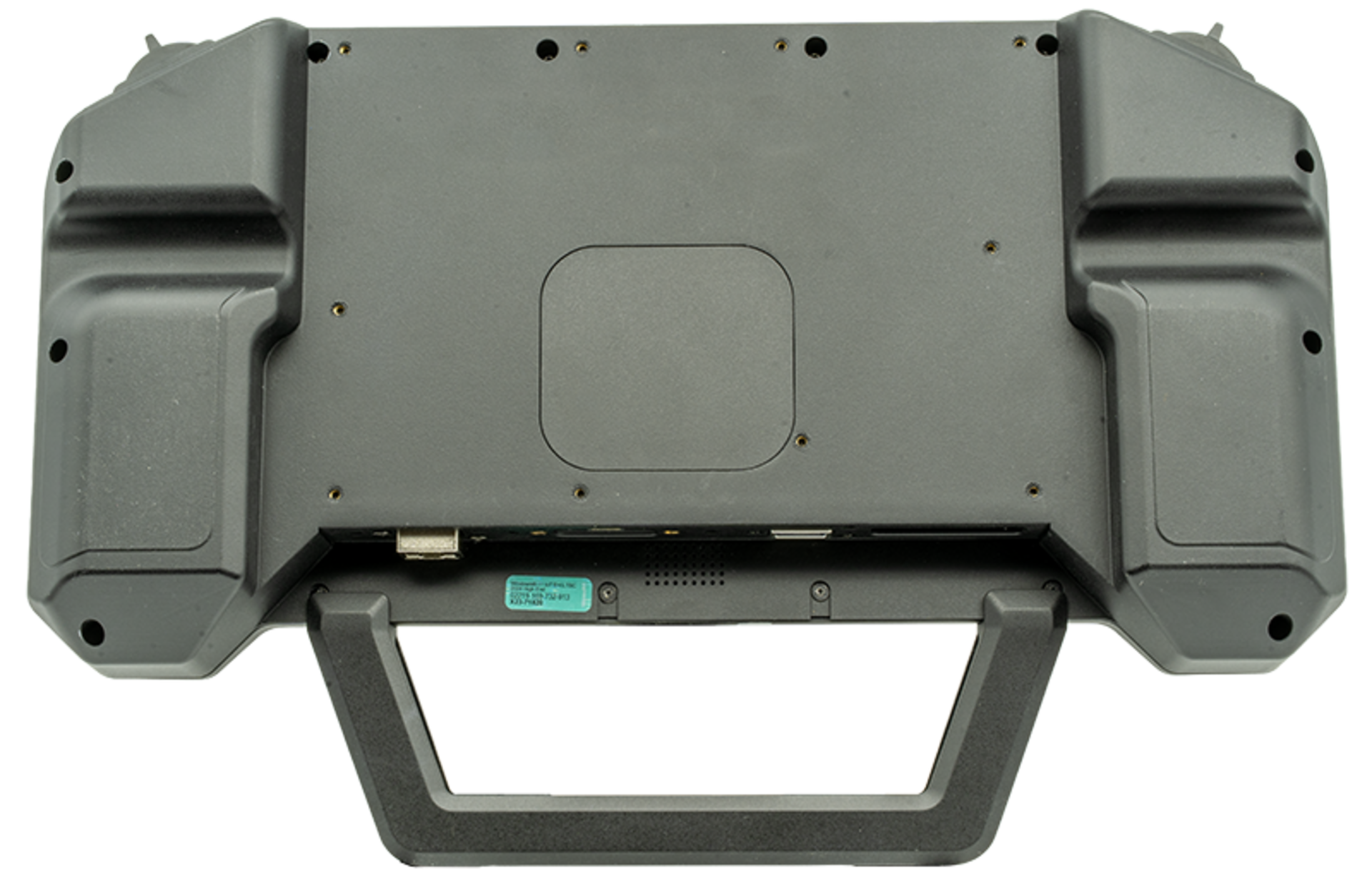

  • Rear:
    • Radio Module Slot

Connectivity [WLAN / BT / GPS]

  • Wi-Fi 4, 5, 6 (Intel® Wi-Fi 6 AX210)
  • Bluetooth®5.3 (Intel® Wi-Fi 6 AX210)
  • Optional:
    • Wi-Fi 4, 5, 6 (Advantech AIW-170BQ-001)
    • GPS/GLONASS/Galileo/Beidou (Ublox Neo-M9N)

Power supply

  • Fast Charging via Type-C: 60W
  • Pack Li-ion 14.4V/2400mAh
  • Optional:
    • Radio Battery Li-ion 7.2V/2400mAh
    • 2nd Battery Pack Li-ion 14.4V/2400mAh

Certification

  • IP65, MIL-STD-810H, MIL-STD-461G

Dimensions [W×H×D]

  • 331 x 169 x 55 mm
  • 331 x 214 x 73 mm (with Handle & Radio Module)

Weight

  • Approx. 1.5kg
  • Approx. 2.3kg (with Handle & Radio Module)
