Panther DH8

full-rugged 5.7" handheld

The fully-rugged Panther DH8 is roda‘s new Intel® Atom based handheld and also the lightest model in the product range with 890 g. As one of the few devices in the field of fully-rugged handhelds, the 5.7“ pad offers a large number of possible interfaces with military connectors, such as Fischer connectors. In addition, to MIL-STD-810H, the IP65 certified device also inherently complies with MIL-STD-461G according to Ground Army.

roda Panther DH8 Rechtsansicht
roda Panther DH8 left view

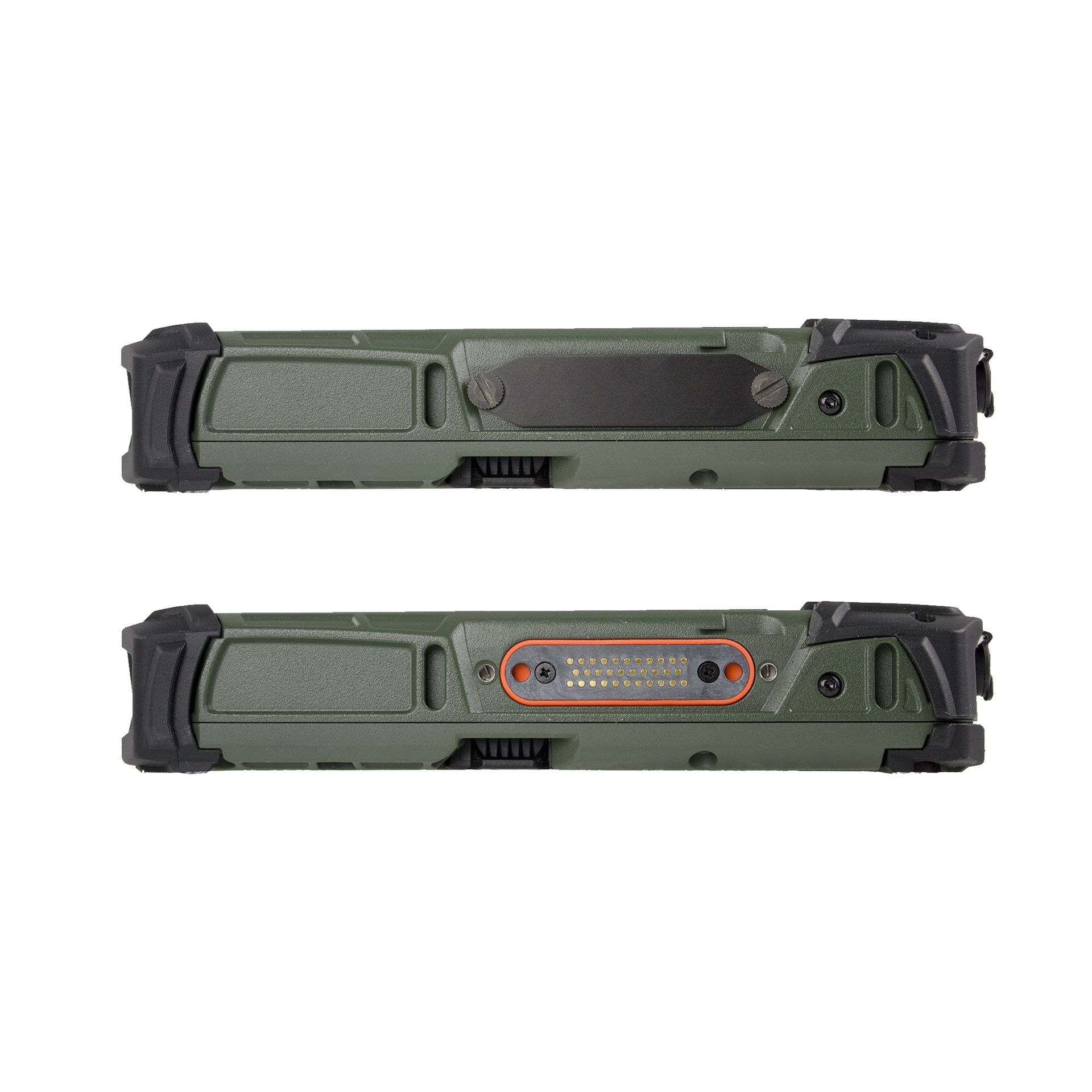

roda Panther DH8 left side

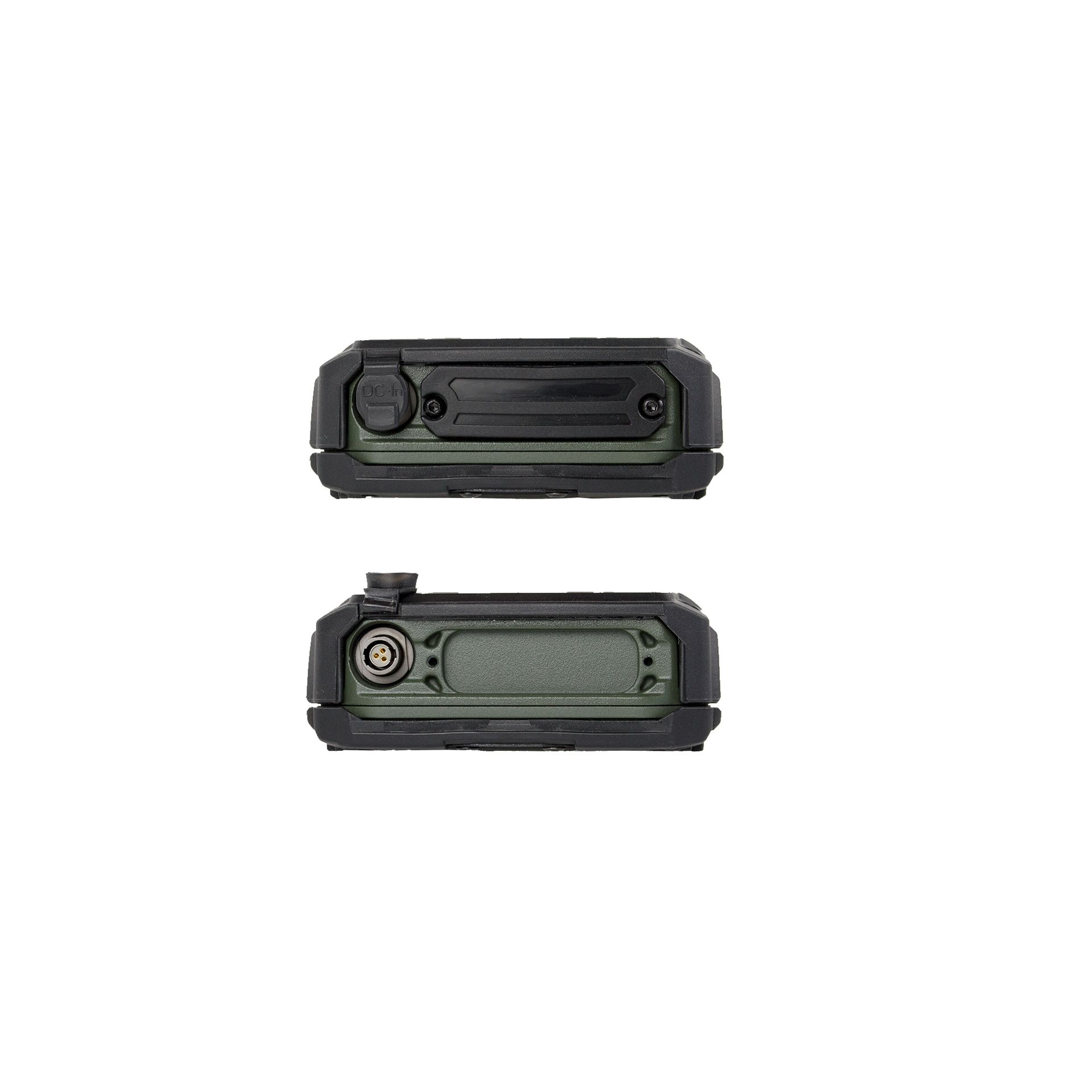

roda Panther DH8 bottom side
roda Panther DH8 right side

Technical specifications

Display

  • LCD 5.7“ HD (720 x 1280)
  • LED backlight
  • Sunlight readable

Touch

  • resistive multi touch screen

CPU

  • Intel® Atom™ x6211E processor, 1.5 MB cache, up to 3.00 GHz

Chipset

  • Intel® Elkhart Lake

Memory

  • DDR4
  • up to 32 GB (1x SO-DIMM slot)

Storage

  • up to 1 TB M.2 SATA3 SSD

Features

  • Optional: Invisible mode (trade-off with night vision)
  • Optional: Night Vision (trade-off invisible mode)

Interfaces

  • 1x USB3.1 Gen. 2 Type-C
  • 1x Docking connector (POGO-pin)
  • Optional:
    • 3x MIL Fischer connector (bottom side)
  • the following signals are available:
    • USB2.0, GLAN, RS232, Audio

Connectivity [WLAN / BT / GPS]

  • Optional: Intel® AX2100 WiFi 6
    • WLAN 802.11 a/b/g/n/ac/ax
    • Bluetooth 5.2
  • Optional: Ublox Neo-M9N (GPS/GLONASS/Galileo)

Power supply

  • 2x Li-ion battery, 7.4 V, 2500 mAh (hot swappable)
  • AC-input 20 V / 3 A, 100-240 V, 50-60 Hz

USB-C AC-adaptor 60 W
Security

  • TPM 2.0 

Operating System

  • Windows 10 Pro

Dimensions [W×H×D]

  • 201 x 99 x 44.5 mm

Weight

  • 890 g

Protection class

  • IP65
  • Optional: IP67

Zertifizierung

  • MIL-STD-810H
  • MIL-STD-461G Ground Navy
  • Optional: MIL-STD 461G Ground Army
